NTNSC669ZZN/ZZNR軸承
- 軸承型號：SC669ZZN/ZZNR
- 系列：非標深溝球軸承1
- 品牌：NTN
NTN SC669ZZN/ZZNR軸承,非標深溝球軸承1，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取NTN SC669ZZN/ZZNR配合安裝尺寸,安裝尺寸,重量,額定動負荷,載荷,SC669ZZN/ZZNR極限轉速,游隙,軸承的圖紙、樣品、價格或者替換產品等！我們是NTN軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
NTNSC669ZZN/ZZNR軸承參數
-
系列非標深溝球軸承1
-
型號SC669ZZN/ZZNR
-
Boundarydimensions
mm- d
- D
- B
- rsmin1
- rNamin1
- 6
- 19
- 6
- 0.3
- 0.3
-
Basic load ratings
- dynamic
- static
- dynamic
- static
- N
- kgf
- Cr
- Cor
- Cr
- Cor
- 2,340
- 885
- 238
- 90
-
Limiting speeds
- rpm
- grease
- oil
- 34,000
- 40,000
-
Bearing numbers
- with snap ring groove shielded type
- with snap ring shielded type
- SC669ZZN
- ZZNR
-
Snap ring groove dimensions
- mm
- D1
- a
- b
- r0
- max
- max
- min
- max
- 17.9
- 0.93
- 0.80
- 0.2
-
snap ring dimensions- mm
- D2
- f
- da
- max
- max
- min
- max
- 22.0
- 0.70
- 8.0
- 9.5
-
Abutment and fillet dimensions
- mm
- Da
- Dx
- CY
- CZ
- ras
- rNas
- max
- (approx.)
- max
- min
- max
- max
- 17.0
- 22.8
- 1.4
- 0.7
- 0.3
- 0.3
-
Mass (approx.)
- (kg)
- with snap ring
- 0.008

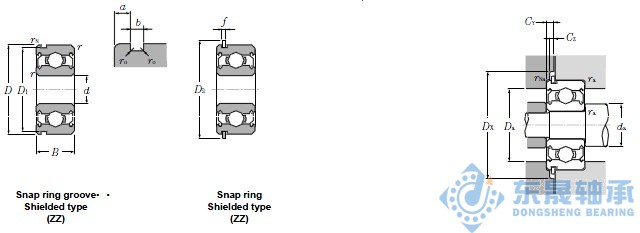

- 非標深溝球軸承1系列 SC669ZZN/ZZNR圖片
