NTN5206CZZ/LLB/LLU軸承
- 軸承型號：5206CZZ/LLB/LLU
- 系列：雙列角接觸球軸承2
- 品牌：NTN
NTN 5206CZZ/LLB/LLU軸承,雙列角接觸球軸承2，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取NTN 5206CZZ/LLB/LLU游隙尺寸,游隙尺寸表,滾子粒數,5206CZZ/LLB/LLU報價,價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等！我們是NTN軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
NTN5206CZZ/LLB/LLU軸承參數
-
系列雙列角接觸球軸承2
-
型號5206CZZ/LLB/LLU
-
Boundarydimensions
mm- d
- D
- B
- rsmin1
- 30
- 62
- 23.8
- 1
-
Basic load ratings
- dynamic
- static
- dynamic
- static
- kN
- kgf
- Ca
- Coa
- Ca
- Coa
- 26.1
- 19.7
- 2,660
- 2,010
-
Limiting speeds
- rpm
- grease
- oil
- 6,300
- 8,400
-
Bearing numbers
- sealed
- non-contact type
- contact type
- 5206CZZ
- LLB
- LLU
-
Abutment and fillet dimensions
- mm
- da
- Da
- ras
- min
- max
- max
- max
- 35.5
- 39
- 56.5
- 1
-
Load center
- mm
- a
- 36.5
-
Mass
- kg
- .approx.
- 0.286

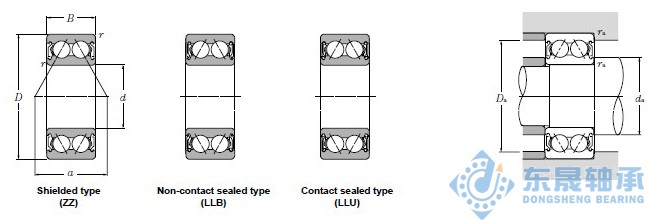

- 雙列角接觸球軸承2系列 5206CZZ/LLB/LLU圖片
