IKONART5VR/NART5VUUR軸承
- 軸承型號：NART5VR/NART5VUUR
- 系列：滾輪滾針軸承3
- 品牌：IKO
IKO NART5VR/NART5VUUR軸承,滾輪滾針軸承3，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO NART5VR/NART5VUUR配合安裝尺寸,基本尺寸,滾子粒數,NART5VR/NART5VUUR價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKONART5VR/NART5VUUR軸承參數
-
系列滾輪滾針軸承3
-
型號NART5VR/NART5VUUR
-
Boundarydimensions
mm- d
- D
- B
- C
- a
- 5
- 16
- 12
- 11
- 12
-
Identification number
- Shield type Crowned outerring
- Sealed type Crowned outerring
- Withcage
- Full complement
- Withcage
- Full complement
- ─
- NART 5 VR
- ─
- NART 5 VUUR
-
Mass (Ref.) g15.1
-
Basic dynamic load rating
- C
- N
- 6 810
-
Basic static load rating
- C0
- N
- 8 370
-
Maximum allowable static load
- N
- 7 310

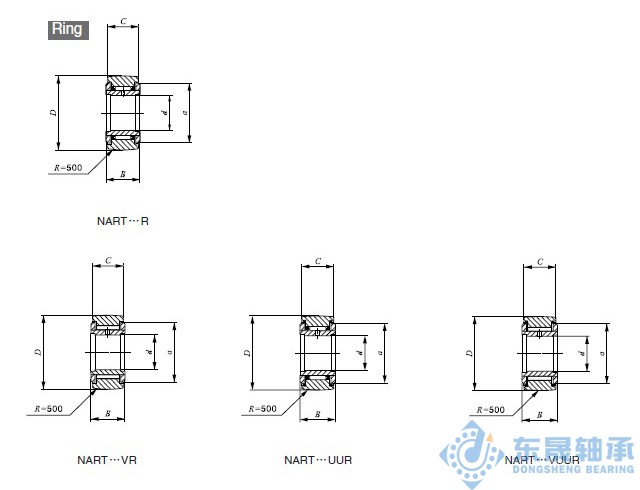

- 滾輪滾針軸承3系列 NART5VR/NART5VUUR圖片
