IKONA6911UU/NA6911U/LRTZ556346軸承
- 軸承型號：NA6911UU/NA6911U/LRTZ556346
- 系列：滾針軸承9
- 品牌：IKO
IKO NA6911UU/NA6911U/LRTZ556346軸承,滾針軸承9，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO NA6911UU/NA6911U/LRTZ556346配合安裝尺寸,基本尺寸,滾子粒數,NA6911UU/NA6911U/LRTZ556346價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKONA6911UU/NA6911U/LRTZ556346軸承參數
-
系列滾針軸承9
-
型號NA6911UU/NA6911U/LRTZ556346
-
Boundary dimensions mm
- d
- D
- B
- C
- r smin(1)
- Fw
- 55
- 80
- 46
- 45
- 1
- 63
-
Identification number
- With two seals
- With one seal
- With two seals
- With one seal
- ─
- ─
- NA 6911UU
- NA 6911U
-
Mass (Ref. )g730
-
Standard mounting dimensions
- da
- Da
- Min.
- Max.
- Max.
- 60
- 61
- 75
-
Basic dynamic load rating
- C
- N
- 89 400
-
Basic static load rating
- C0
- N
- 171 000
-
Allowable rotational
- speed(2)
- rpm
- 3 000
-
Assembled inner ring
- LRTZ 556346

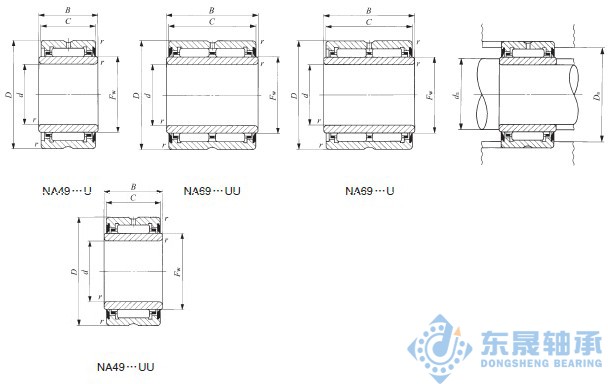

- 滾針軸承9系列 NA6911UU/NA6911U/LRTZ556346圖片
