IKOCFE30-2VBR/CFE30-2VB/CFE30-2VBUUR/CFE30-2VBUU軸承
- 軸承型號：CFE30-2VBR/CFE30-2VB/CFE30-2VBUUR/CFE30-2VBUU
- 系列：螺栓型滾輪滾針軸承7
- 品牌：IKO
IKO CFE30-2VBR/CFE30-2VB/CFE30-2VBUUR/CFE30-2VBUU軸承,螺栓型滾輪滾針軸承7，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO CFE30-2VBR/CFE30-2VB/CFE30-2VBUUR/CFE30-2VBUU代號,基本尺寸,安裝尺寸,基本額定載荷,精度等級,裝配,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKOCFE30-2VBR/CFE30-2VB/CFE30-2VBUUR/CFE30-2VBUU軸承參數
-
系列螺栓型滾輪滾針軸承7
-
型號CFE30-2VBR/CFE30-2VB/CFE30-2VBUUR/CFE30-2VBUU
-
Boundarydimensions
mm- D
- C
- de
- G
- B3
- B
- B1
- B2
- C1
- g1
- G1
- H
- r smin(1)
- max
- max
- 90
- 35
- 41
- M30×1.5
- 32.5
- 37
- 100
- 63
- 1
- 8
- 30.5
- 17
- 1
-
Identification number
- Shield type
- Sealedtype
- With crowned outer ring
- With cylindrical outer ring
- With crowned outer ring
- With cylindrical outer ring
- CFE 30-2 VBR
- CFE 30-2 VB
- CFE 30-2 VBUUR
- CFE 30-2 VBUU
-
Mass (Ref.) g2 380
-
Eccentricity
- ε
- 1.5
-
Mounting dimension
- f
- Min.mm
- 49
-
Maximum tightening torque
- N-m
- 438
-
Basic dynamic load rating
- C
- N
- 67 700
-
Basic static load rating
- C0
- N
- 144 000
-
Maximum allowable load
- N
- 85 900

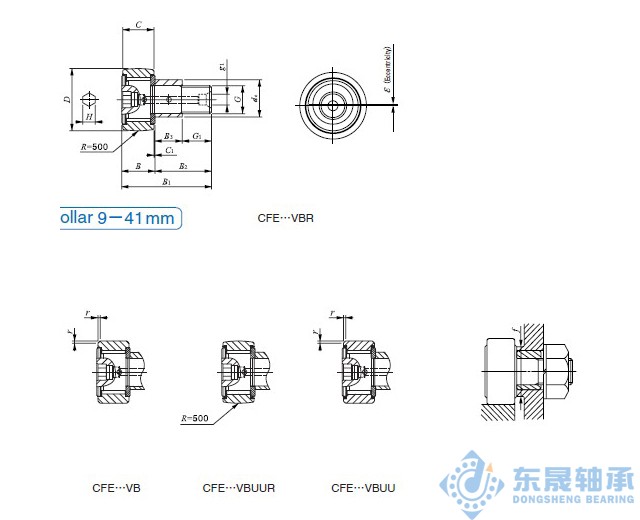

- 螺栓型滾輪滾針軸承7系列 CFE30-2VBR/CFE30-2VB/CFE30-2VBUUR/CFE30-2VBUU圖片
