IKOCF8VRM/CF8VM/CF8VUURM/CF8VUUM軸承
- 軸承型號：CF8VRM/CF8VM/CF8VUURM/CF8VUUM
- 系列：螺栓型滾輪滾針軸承3
- 品牌：IKO
IKO CF8VRM/CF8VM/CF8VUURM/CF8VUUM軸承,螺栓型滾輪滾針軸承3，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO CF8VRM/CF8VM/CF8VUURM/CF8VUUM配合安裝尺寸,安裝尺寸,重量,額定動負荷,載荷,CF8VRM/CF8VM/CF8VUURM/CF8VUUM極限轉速,游隙,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKOCF8VRM/CF8VM/CF8VUURM/CF8VUUM軸承參數
-
系列螺栓型滾輪滾針軸承3
-
型號CF8VRM/CF8VM/CF8VUURM/CF8VUUM
-
Boundarydimensions
mm- D
- C
- d1
- G
- G1
- B
- B1
- B2
- B3
- C1
- g1
- g2
- H
- r smin(1)
- max
- max
- 19
- 11
- 8
- M 8×1
- 10
- 12.2
- 32.2
- 20
- ─
- 0.6
- ×4
- ─
- 名稱a5
- 0.3
-
Identification number
- Shield type
- Sealedtype
- With crowned outer ring
- With cylindrical outer ring
- With crowned outer ring
- With cylindrical outer ring
- CF 8 VRM
- CF 8 VM
- CF 8 VUURM
- CF 8 VUUM
-
Mass (Ref.) g29
-
Mounting dimension
- f
- Min.mm
- 13
-
Maximum tightening torque
- N-m
- 7.1
-
Basic dynamic load rating
- C
- N
- 8 170
-
Basic static load rating
- C0
- N
- 11 200
-
Maximum allowable load
- N
- 4 620

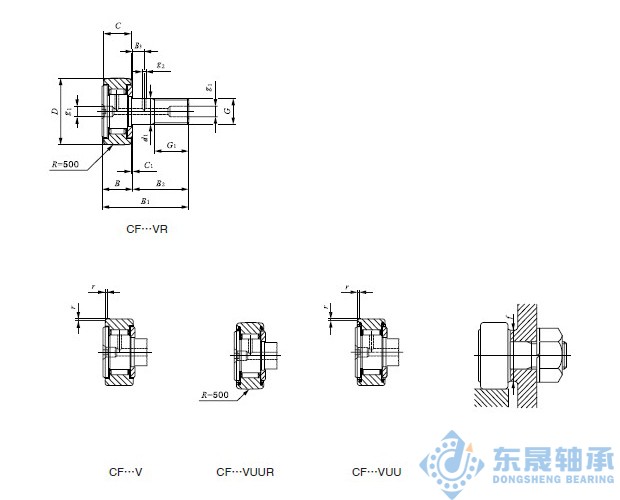

- 螺栓型滾輪滾針軸承3系列 CF8VRM/CF8VM/CF8VUURM/CF8VUUM圖片
