IKOCF3R/CF3/CF3UUR/CF3UU軸承
- 軸承型號：CF3R/CF3/CF3UUR/CF3UU
- 系列：螺栓型滾輪滾針軸承2
- 品牌：IKO
IKO CF3R/CF3/CF3UUR/CF3UU軸承,螺栓型滾輪滾針軸承2，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO CF3R/CF3/CF3UUR/CF3UU配合安裝尺寸,基本尺寸,滾子粒數,CF3R/CF3/CF3UUR/CF3UU價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKOCF3R/CF3/CF3UUR/CF3UU軸承參數
-
系列螺栓型滾輪滾針軸承2
-
型號CF3R/CF3/CF3UUR/CF3UU
-
Boundarydimensions
mm- D
- C
- d1
- G
- G1
- B
- B1
- B2
- B3
- C1
- g1
- g2
- H
- r smin(1)
- 10
- 7
- 3
- M 3×0.5
- 5
- 8
- 17
- 9
- ─
- 0.5
- ─
- ─
- 名稱a5
- 0.2
-
Identification number
- Shield type
- Sealedtype
- With crowned outer ring
- With cylindrical outer ring
- With crowned outer ring
- With cylindrical outer ring
- CF 3 R
- CF 3
- CF 3 UUR
- CF 3 UU
-
Mass (Ref.) g4.3
-
Mounting dimension
- f
- Min.mm
- 6.8
-
Maximum tightening torque
- N-m
- 0.34
-
Basic dynamic load rating
- C
- N
- 1 500
-
Basic static load rating
- C0
- N
- 1 020
-
Maximum allowable load
- N
- 384

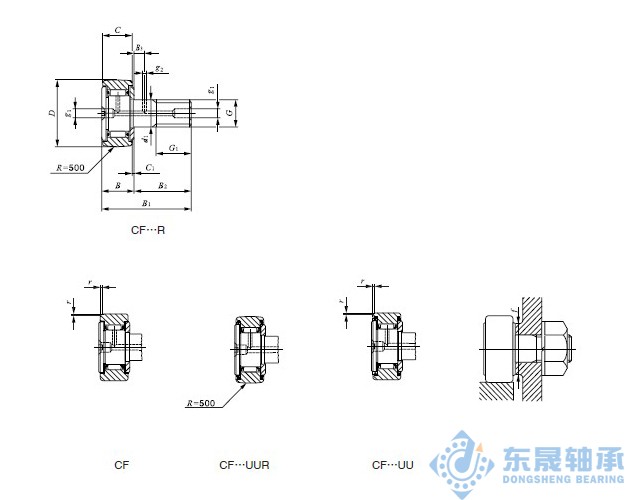

- 螺栓型滾輪滾針軸承2系列 CF3R/CF3/CF3UUR/CF3UU圖片
