IKOBRI203320UU/BRI203320U/LRBZ202420B軸承
- 軸承型號：BRI203320UU/BRI203320U/LRBZ202420B
- 系列：滾針軸承11
- 品牌：IKO
IKO BRI203320UU/BRI203320U/LRBZ202420B軸承,滾針軸承11，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO BRI203320UU/BRI203320U/LRBZ202420B配合安裝尺寸,基本尺寸,滾子粒數,BRI203320UU/BRI203320U/LRBZ202420B價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKOBRI203320UU/BRI203320U/LRBZ202420B軸承參數
-
系列滾針軸承11
-
型號BRI203320UU/BRI203320U/LRBZ202420B
-
Boundary dimensions mm
- d
- D
- B
- C
- Fw
- 31.750（1.25)
- 52.388（2.0625)
- 32.000
- 31.750(1.25)
- 38.100（1.5)
-
Identification number
- With two seals
- With one seal
- BRI 203320 UU
- BRI 203320 U
-
Mass (Ref. )g254
-
Standard mounting dimensions
mm- da
- Da
- (1)
- Min.
- Max.
- Max.
- r as max(1)
- 37
- 37.1
- 45.1
- 0.6
-
Basic dynamic load rating
- C
- N
- 43 700
-
Basic static load rating
- C0
- N
- 66 900
-
Allowable rotational
- speed(2)
- rpm
- 5 500
-
Assembled inner ring
- LRBZ202420 B

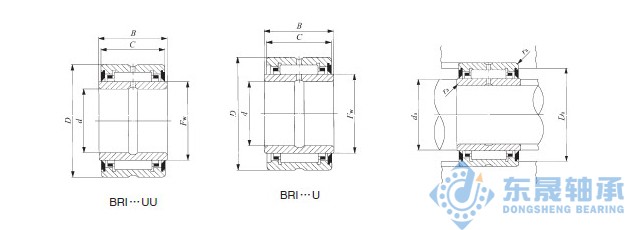

- 滾針軸承11系列 BRI203320UU/BRI203320U/LRBZ202420B圖片
